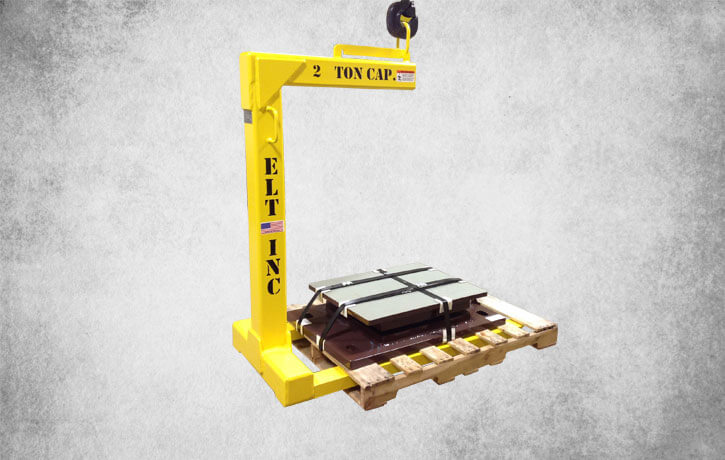

Fixed Crane Fork

Loading...

Model FCF – Standard Quote

Fixed Crane Fork Specifications

The Fixed Crane Fork allows you to handle pallets with an overhead crane. The crane fork also allows you access to pallets in confined areas that may not be accessible to fork trucks. Standard WLL: 1,000 to 20,000 lbs

Standard Load Lengths: 48 inches
Standard Vertical Clearance: 48 inches
Custom options available

FCF Specifications (PDF Format)

Model Number Capacity (lbs) Vertical Clearance (in) Dist. To Center of Gravity (in) Fork Length (in) Fork Size (in) Outside Width (in) Lift Ring Size (in) Total Height (in) Approx. Unit Weight (lbs)
FCF – 02 2000 48 24 48 1-1/4 x 4 24 0.63 x 2.80 x 5.00 61-1/2 339
FCF – 04 4000 48 24 48 1-1/3 x 4 24 0.63 x 2.80 x 5.00 62-5/8 423
FCF – 06 6000 48 24 48 1-3/4 x 4 28 0.88 x 3.75 x 6.38 65-1/4 585
FCF – 08 8000 48 24 48 1-3/4 x 6 36 1.10 x 4.30 x 7.50 66-1/4 715
FCF – 10 10000 48 24 48 2-1/4 x 6 38 1.10 x 4.30 x 7.50 69-1/4 810
FCF – 15 15000 48 24 48 2-1/2 x 6 42 1.33 x 5.50 x 9.50 71-5/8 1050
FCF – 20 20000 48 24 48 3 x 6 54 1.61 x 5.90 x 10.50 75-3/4 1489
