Pipe Hooks

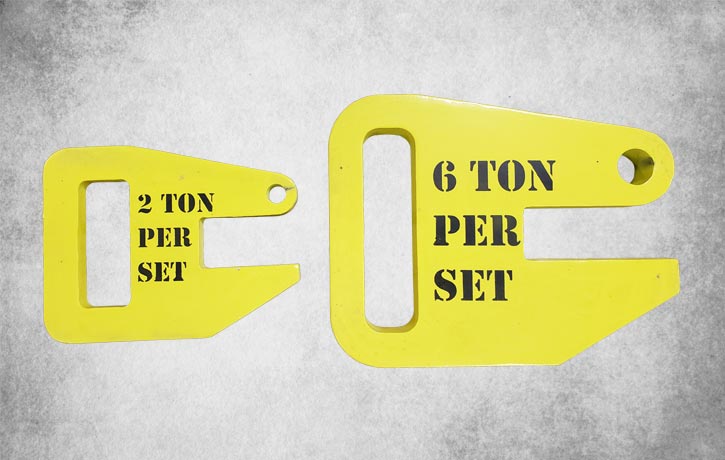

The Pipe Hook offers a lightweight, affordable solution for lifting lengths of pipe with a crane.

Bridle Leg length determines the maximum length of pipe that can be lifted.

Each hook is proof tested exceeding ANSI/ASME B30.20 standards and a test certificate is issued. Pipe Hooks are painted safety yellow and clearly marked on both sides with rated capacity to conform to OSHA standards.

Questions about which pipe hook will best fit your needs?

Call one of our product experts at 855-800-9568 to find out which pipe hook would work best for your project.

Or Request a Quote below!

Request Quote

Model Capacity Per Pair A Notch Width (in) B Notch Depth (in) C
Hook Thickness (in)
D Hook Width (in) E Hook Height (in) Shackle rating Hook Weight (lb)
PH-2 2 1-1/2 2-7/8 1/2 7-3/8 5-3/4 1-1/2t 5
PH-4 4 1-1/2 3-1/8 3/4 9-1/8 7-3/8 3-1/4 10
PH-6 6 1-1/2 4-3/8 1 9-7/8 7-7/8 4-3/4t 17
PH-8 8 1-1/2 4-5/8 1-1/4 10-1/8 7-5/8 6-1/2t 23
PH-10 10 1-1/2 5-3/4 1-1/4 12-1/4 10-1/4 6-1/2t 34
PH-15 15 1-1/2 6-1/8 1-3/4 12-5/8 9-5/8 12t 55


pipe-hook-diagram



1. Please verify hook slot will fit anticipated pipe to be lifted.

2. Other capacities and dimensions available upon request.

3. Please note: weight and dimensions may vary and are approximate and for reference only.
Specific weight cannot be determined until the unit is manufactured.
