Model ACF – Standard Quote

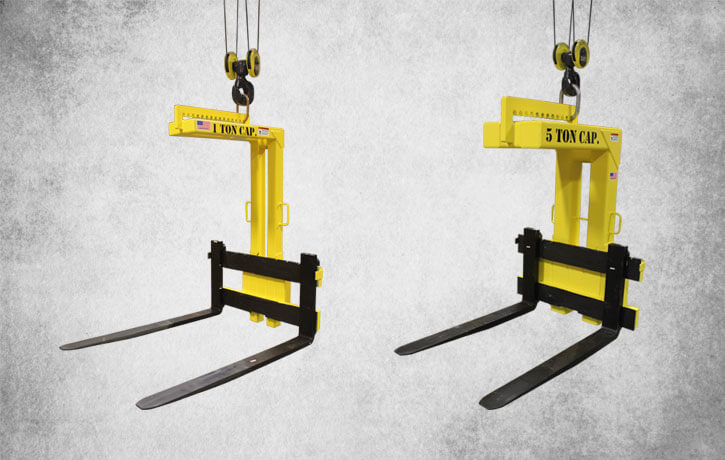

Engineered Lifting Technologies Adjustable Crane Forks

The Adjustable Crane Fork utilizes standard fork, truck forks and carriages. The forks adjust easily by hand and lock into place for a perfect fit every time.

Rugged tubular construction, with reinforcement plates welded on at strategic locations, provides superior strength and durability.

Custom options available

Click on this link to check out the Adjustable Crane Fork in action!

ACF Specification (PDF Format)

Model Number Capacity (lbs) Vertical Clearance (in) Dist. To Center of Gravity (in) Fork Length (in) Fork Size (in) Outside Width Minimum – Max (in) Lift Ring Size (in) Total Height (in) Approx. Unit Weight (lbs)
ACF – 02 2000 48 24 48 1-1/4 x 4 15 – 36 0.63 x 2.80 x 5.00 60-1/2 485
ACF – 04 4000 48 24 48 1-1/2 x 4 15 – 38 0.73 x 3.20 x 6.00 61-5/8 610
ACF – 06 6000 48 24 48 1-3/4 x 4 15 – 38 0.88 x 3.75 x 6.38 63-4/8 730
ACF – 08 8000 48 24 48 1-3/4 x 5 18 – 42 1.10 x 4.30 x 7.50 66-1/4 1090
ACF – 10 10000 48 24 48 2 x 5 18 – 42 1.10 x 4.30 x 7.50 68-1/2 1230
ACF – 15 15000 48 24 48 2-1/4 x 6 21 – 48 1.33 x 5.50 x 9.50 70-1/4 1600
ACF – 20 20000 48 24 48 2-1/2 x 6 21 – 48 1.61 x 5.90 x 10.50 70-1/4 1810
